Accurate epitope mapping is essential for therapeutic antibody development, guiding lead selection and downstream optimization. Conventional methods such as hydrogen–deuterium exchange mass spectrometry (HDX-MS), alanine-scanning mutagenesis, and X-ray crystallography each offer specific advantages but are limited by trade-offs in resolution, throughput, and applicability. Recent advances in cryogenic electron microscopy (cryo-EM) have closed the “resolution gap” between high-throughput, low-resolution methods and high-resolution, low-throughput techniques. Using an integrated, high-throughput cryo-EM workflow as a case example, we compare these approaches in terms of resolution, speed, applicability, and confidence, and discuss their complementary roles in antibody discovery (see Fig. 1; Tab. 1).



Epitope mapping defines the structural interface between an antibody and its target antigen, enabling rational lead selection, engineering, and intellectual property protection [1, 2]. High-confidence mapping data early in development can reduce attrition rates and optimize resource allocation [3]. Traditional approaches such as HDX-MS [2, 1] and alanine scanning [3] are widely used for early triage but yield indirect or mutation-dependent results. X-ray crystallography provides atomic-level detail [6] yet requires successful crystallization of each antibody–antigen complex, which is often unfeasible for glycosylated, flexible, or membrane-bound targets [5]. Cryo-EM avoids crystallization and preserves native conformations, accommodating a broader range of antigens [6, 8–10].

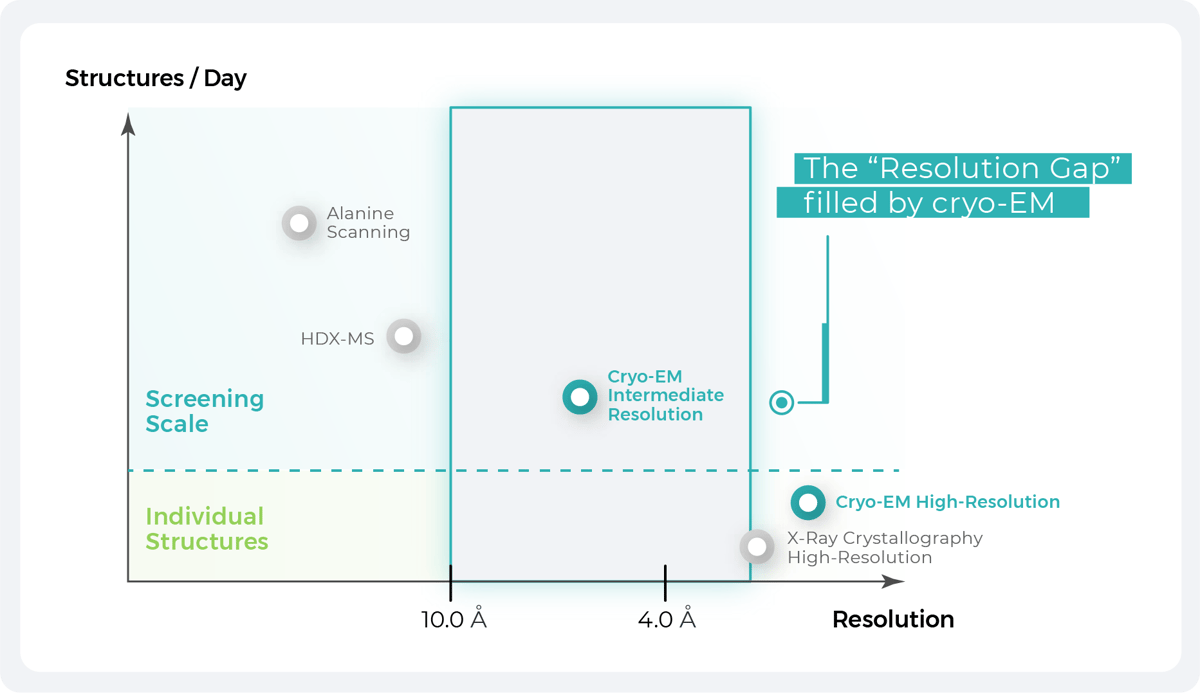

Figure 1: Cryo-EM fills the resolution gap previously left open by current methods by offering high-throughput processes and intermediate-resolutions.



Hydrogen–Deuterium Exchange Mass Spectrometry (HDX-MS)

HDX-MS measures amide hydrogen exchange rates in solvent, revealing regions shielded by antibody binding [1, 2]. Throughput: high relative to other structural methods; multiple candidates screened per week. Resolution: typically 10–15 residues (peptide level). Suitability: suitable for soluble, moderately sized proteins; may struggle with very large complexes. Limitations: indirect readout and potential back-exchange artifacts [2].

Alanine-Scanning Mutagenesis

Systematic mutation of residues to alanine to identify those critical for binding [3]. Traditional: labor-intensive, low throughput. Modern high-throughput variants: automated shotgun mutagenesis and combinatorial scanning enable parallel mapping of linear and conformational epitopes [12, 11]. Suitability: suitable for well-expressed, mutatable antigens; not ideal for large membrane proteins. Limitations: mutations may perturb protein folding.

X-ray Crystallography

Determines atomic structures from electron-density maps of crystallized antibody–antigen complexes [6]. Resolution: 1.5–3.0 Å routine; >3.5 Å requires caution in interpretation. Throughput: low due to crystallization bottleneck. Suitability: requires crystallizable complexes; limited with flexible, glycosylated, or membrane-associated targets [5].

Cryo-Electron Microscopy (Cryo-EM)

Samples are vitrified in native buffers; single-particle analysis reconstructs 3D structures [6, 8–10]. Intermediate resolution: 4–10 Å; defines epitope boundaries and detects conformational changes. High resolution: <4 Å; residue-level epitope/paratope mapping. Throughput: varies from moderate to high depending on automation and infrastructure; recent integrated workflows have made it viable for screening multiple candidates in parallel. Suitability: suitable for large, glycosylated, flexible, and membrane-bound antigens. Advantages: avoids crystallization, tolerates post-translational modifications, and is applicable to large complexes [6].



Figure 2. Resolution gap across epitope-mapping methods. Cryo-EM spans the intermediate-to-high resolution range, bridging HDX-MS/alanine scanning and X-ray crystallography.



A staged cryo-EM workflow typically incorporates a 1–2 week pilot phase to assess sample stability and homogeneity via 2D classification. With sound preparation and planning, up to 5 structures can be determined in a standard 3-week cycle, and under optimized conditions this capacity can be extended to as many as 20 complexes (ATEM Insights Report). High-resolution cryo-EM then resolves individual amino acid contacts, supporting mode-of-action analysis and patent filings [8–10]. While HDX-MS remains valuable for rapid screening of large panels [2], alanine scanning is well suited to validate key residues once structural context is available [3, 12]. X-ray crystallography offers exceptional resolution for crystallizable systems but lacks the breadth and speed achievable with modern cryo-EM [6, 5].

The optimal strategy is integrative: HDX-MS for dynamics and solvent protection patterns, cryo-EM for direct structural context in native conditions, alanine scanning (traditional or automated) for residue specificity, and X-ray for atomic-level refinement. This multi-modal approach maximizes confidence while balancing throughput and resolution.

Conclusion

The resolution gap in epitope mapping has historically limited confident lead selection. High-throughput cryo-EM delivers structural insight early in the development pipeline, reducing risk and accelerating timelines. Strategic integration of complementary methods ensures robust structural characterization across diverse antigen classes.
